Cluster OS Rolling Upgrades in Windows Server 2016

Cluster OS Rolling upgrade is a new feature in Windows Server 2016 failover clustering. If a Windows server 2012 failover clusters running the Hyper-V or Scale-Out File Server roles, you can add Windows Server 2016 nodes without taking the failover cluster offline. In earlier Windows Server versions, you had to create a new cluster with the new operating system on all nodes, and then you had to move the clustered services over to the new cluster. This created downtime and made it difficult to quickly complete upgrades. With Windows Server 2016, cluster nodes do not require additional hardware to upgrade, you can take one node at a time offline, upgrade the operating system, and bring the node back into the existing cluster. This changes the cluster to a mixed operating system mode. The process is fully reversible- Windows Server 2016 nodes can be removed from the cluster and Windows Server 2012 R2 nodes can be added to the cluster in this mixed mode. After you upgrade all nodes, you can change the functional level of the entire cluster from the Windows Server 2012 R2 version to Windows Server 2016 version.

Cluster OS Rolling Upgrade Process

This section describes the workflow for performing Cluster OS Rolling Upgrade. Image copy from TechNet.

Before you start Cluster OS Rolling Upgrades, first we should backup cluster database and workload data. Then, verify that Cluster Aware Updates (CAU) is currently running by using Get-CauRun cmdlet. If CAU is currently running, use CAUStop-CauRun cmdlet to stop Cluster Aware Update (CAU).

Stopping Cluster Aware Update (CAU):

If you are running Cluster Aware Update (CAU), verify use the PowerShell, Get-CauRun cmdlet. To stop CAU use the PowerShell, Stop-CauRun cmdlet. But in this demo, you have not installed Cluster Aware Updates (CAU). So it’s WARNING: No Updating Run is currently in progress on cluster.

Verify that all cluster nodes state are Up before remove Node from the Cluster:

Using the cmdlet, Get-ClusterNode to verify the cluster nodes State.

Pause Node | Drain Roles Hyper-V nodes from the cluster:

In the Failover Cluster Manager Windows, select Roles and make sure all the VMs are migrated to another node in the cluster. Here, you are removing KTM-HOST1 node from the cluster.

In the Failover Cluster Manager Windows, in the left-hand pane, select Nodes. In the middle pane, right click on the Node, KTM-HOST1, then select Pause | Drain roles option to drain the node.

Evict the Node from the Cluster:

Once the node is drained, right-click on the node, KTM-HOST1, select More Actions and then click Evict to remove the selected node from the cluster.

In the Evict node KTM-HOST1 dialog box, Are you sure you want to evict node KTM-HOST1 from the cluster? Click Yes.

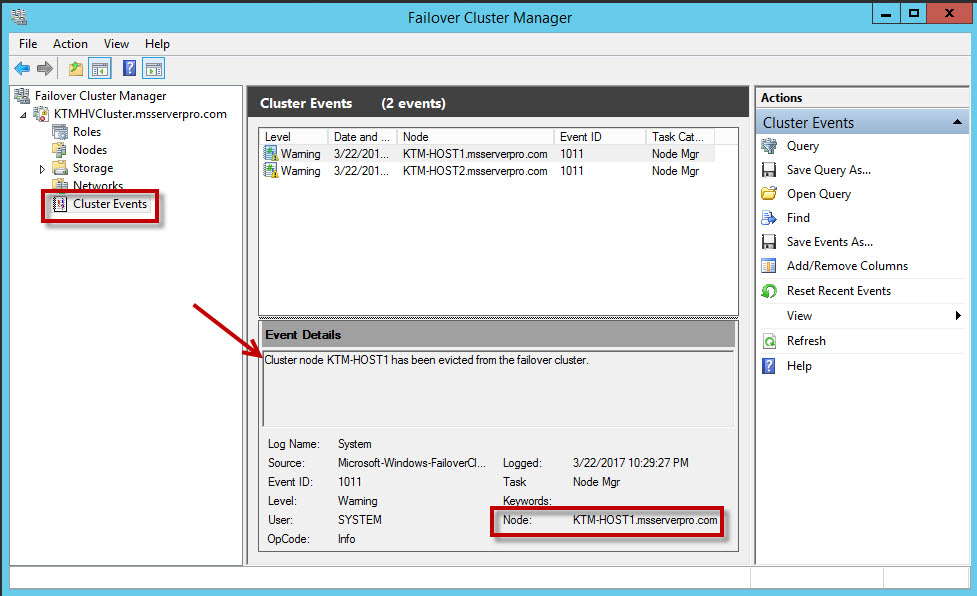

In the cluster event details, verity that the cluster node KTM-HOST1 has been evicted from the failover cluster.

Clean OS Install:

First remove the currently evicted node from the domain.

Clean Installation of Windows Server 2016:

Format the system drive of the evicted node and perform a clean Installation of Windows Server 2016.

Configure Server Name and Add the Server to the Domain:

Configure the server name as per your previous name and Add the server to the Domain.

Install Hyper-V Role, Multipath I/O, Failover Clustering Feature:

After you have joined KTM-HOST1 to the domain, msserverpro.com, you can install Hyper-V role, Multipath I/O, and Failover Clustering feature on KTM-HOST1.

Configure Network and Storage Connectivity:

Configure network connectivity and virtual switch as per previous configuration.

Connect to Shared Storage:

Connect the server to shared storage as per previous configuration. For share storage connection I will share on the coming article.

Add the Node to the original Cluster:

After completed installation and configurations, it’s time to add Hyper-V Host to the failover clustering.

In the Failover Cluster Manager Windows, in the left side, right click on Nodes, select Add Node…

On the Before You begin page, click Next.

On the Selected Servers page, type the required server name under Enter server name box and click Add

On the Validation Warning page, select No, I do not require support from Microsoft for this cluster, and therefore do not want to run the validation tests. When I click Next, continue adding the nodes(s) to the cluster and click Next.

On the Confirmation page, make sure check mark is selected in Add all eligible storage to the cluster and click Next.

On the Configure the Cluster page, please wait while the cluster is configured….

On the summary page, click View report and click Finish.

Verify the KTM-HOST1 Operating System is Microsoft Windows Server 2016 Datacenter and KTM-HOST2 Operating System is Microsoft Windows Server 2012 R2 Datacenter.

On the Failover Cluster Manager Windows, click Cluster Events to view the cluster Event Details message, shows that Failover Cluster runs in mixed mode, which is compatible version of the cluster service software. It is recommended that the same version of the cluster service software be installed on all nodes in the cluster”

Verify the ClusterFunctionalLevel, from a Windows Server 2016 cluster node that belongs to a failover cluster:

Verify the OS Version and the current ClusterFunctionalLevelIf the ClusterFunctionalLevel value set to 8, then the cluster at Windows Server 2012 R2.

Now Remove NODE 2, Windows Server 2012 R2 from the cluster:

Ensure that the VMs are migrated from NODE2 to NODE1 in the failover cluster before you can evict NODE 2 from the failover cluster.

Verify all the VMs are in NODE1, KTM-HOST1.

Suspend the node from the cluster using PowerShell:

Remove the node from the cluster using PowerShell:

In the Cluster Events Details, make sure that “Cluster node KTM-HOST2 has been evicted from the failover cluster”.

Remove the Server from the Domain, Clean Installation of Windows Server 2016, and Configure Server Name and Add the Server to the Domain, msservepro.com.

Add the Node to the original Cluster (node rejoins the cluster) using PowerShell

We can also add the node to the cluster by using the PowerShell cmdlet Add-ClusterNode.

After the Windows Server 2016 node is successfully added to the cluster, you can (optionally) move some of the cluster VMs to the newly added node in order to rebalance the workload across the cluster using Move-ClusterVirtualMachineRolecmdlet given below:

Move-ClusterVirtualMachineRole -Name KTM-DB1 -Node KTM-HOST2

Updating the Cluster Functional Level:

Until the Update-ClusterFunctionalLeve cmdlet to run, cluster runs in mixed mode, this process is fully reversible and Windows Server 2012 R2 nodes can be added to this cluster and Windows Server 2016 nodes can be removed.

ClusterFunctionalLevel

8= Windows Server 2012 R2 Functional Level (compatibility or mixed-OS mode)
9= Windows Server 2016 Functional Level

Use Get-Cluster | Select ClusterFunctionalLevel to display state

Once all cluster members are running Windows Server 2016, use Update-ClusterFunctionalLevel PowerShell cmdlet (one-way trip) is run, new features are available.

Finally, Microsoft recommends finishing this Cluster OS Rolling upgrade process within 1 month. That’s because having this mixed-OS mode is not optimized in terms of performance. For more details you can check in the TechNet; https://technet.microsoft.com/en-us/windows-server-docs/failover-clustering/cluster-operating-system-rolling-upgrade



Summary:

Windows Server 2016 makes upgrading clusters easy with rolling upgrades. I hope this article help you Windows Server 2016 Cluster OS Rolling Upgrade configuration.
